  BLIND FLANGE DIN 2527 PN10
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China
Shandong Hyupshin Flanges Co., Ltd, Steel Flanges Manufacturer, Exporter, Supplier, DIN blind flange, DIN 2527 flange PN10, BLFF Flange, BLRF Flange, S235JRG2, RST37.2, Blank Flange
HYUPSHIN FLANGES
1. Standard: DIN 2527, BlindFlanshce
2. Type:
Blind Flange, Blank Flange (Flat Face)
3. Pressure:
PN10
4. Size:
DN15 - DN2000, larger Sizes available on request
5. Raw Material:
C22.8, RSt37.2, S235JRG2, C21, A105
6. Process:
Forged, Stamped
7. Basic requirements for Material and Flange
Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100
Blindflansche Nenndruck 6 bis 100
Brides plaines, pressions nominales 6 à 100

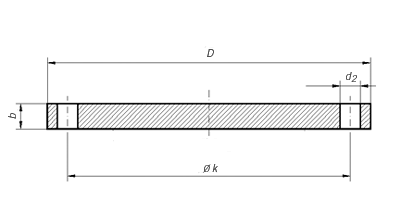

DIN 2527 PN10 BLIND FLANGE
Rated
Diameter
Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 95 14 65 4 M 12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M 16 18 1,8
40 150 16 110 2,09
50 165 18 125 2,88
65 185 18 145 3,66
80 200 20 160 4,77
100 220 20 180 8 5,65
125 250 22 210 8,42
150 285 22 240 M 20 22 10,4
200 340 24 295 16,5
250 395 26 350 12 24
300 445 26 400 30,9
350 505 26 460 16 40,6
400 565 26 515 M 24 26 49,4
500 670 28 620 20 75
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
